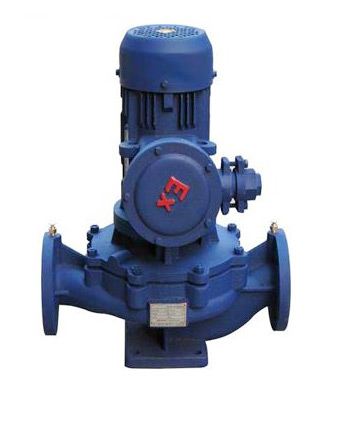

產品概述
YG系列立式離心泵是安裝使用方便，泵軸同心度及葉輪極好的動靜平衡，保證了運行時無動靜、低噪音。采用碳化硅，氟橡硬質合金機械密封，泵體過流部分壁厚加厚能保證靜壓高的循環系統正常使用
產品用途
1.YG泵輸送油類或易燃、易爆液體，如柴油、汽油、煤油等。
2.該泵主要使用在管路增壓，遠距離輸送汽油、煤油、柴油、航空油等油類，也可輸送其它無腐蝕性的液體。 介質溫度為-20℃～80℃。適用于油庫、油站、化工、礦山、石化、企事業單位等。
工作條件
流量: 2～1400m 3 /h 揚程：5～130m
工作溫度：-20℃ ～+ 100℃
防護等級：IP44或IP54 環境溫度：≤+40℃
電機類型：YB
結構圖
 |
序號 |
部件名稱 |
序號 |
部件名稱 |
| 1 |
葉輪 |
5 |
端蓋 |
| 2 |
泵體 |
6 |
葉輪螺母 |
| 3 |
機械密封 |
7 |
泵軸 |
| 4 |
擋水圈 |
8 |
電機(防爆) |
性能參數表
型號
Model |
流量
Flow
(m 3 /h) |
揚程Head
(m) |
轉速
Speed
(r/min) |
功率
Power
(KW) |
電壓Voltage
(V) |
汽蝕余量NPSHr |
重量Weight
(kg) |
| 20-160 |
2 |
32 |
2900 |
0.75 |
380 |
2.3 |
38 |
| 25-125 |
3 |
20 |
＂ |
0.75 |
＂ |
2.3 |
35 |
| 25-160 |
3 |
32 |
＂ |
1.1 |
＂ |
2.3 |
44 |
| 25-160A |
2.6 |
25 |
＂ |
0.75 |
＂ |
2.3 |
40 |
| 32-125 |
4.5 |
20 |
＂ |
0.75 |
＂ |
2.3 |
38 |
| 32-160 |
4.5 |
32 |
＂ |
1.5 |
＂ |
2.3 |
49 |
| 32-160A |
4 |
25 |
＂ |
1.1 |
＂ |
2.3 |
43 |
| 32-200 |
4.5 |
50 |
＂ |
3 |
＂ |
2.3 |
68 |
| 32-200A |
4 |
40 |
＂ |
2.2 |
＂ |
2.3 |
58 |
| 40-100 |
6.3 |
12.5 |
＂ |
0.75 |
＂ |
2.3 |
36 |
| 40-125 |
6.3 |
20 |
＂ |
1.1 |
＂ |
2.3 |
45 |
| 40-125A |
5.5 |
16 |
＂ |
0.75 |
＂ |
2.3 |
38 |
| 40-160 |
6.3 |
32 |
＂ |
2.2 |
＂ |
2.3 |
52 |
| 40-160A |
5.5 |
25 |
＂ |
1.5 |
＂ |
2.3 |
42 |
| 40-200 |
6.3 |
50 |
＂ |
4 |
＂ |
2.3 |
79 |
| 40-200A |
5.5 |
40 |
＂ |
3 |
＂ |
2.3 |
67 |
| 40-250 |
6.3 |
80 |
＂ |
7.5 |
＂ |
2.3 |
123 |
| 40-250A |
5.5 |
65 |
＂ |
5.5 |
＂ |
2.3 |
115 |
| 40-100(I) |
12.5 |
12.5 |
＂ |
0.75 |
＂ |
2.3 |
40 |
| 40-125(I) |
12.5 |
20 |
＂ |
1.5 |
＂ |
2.3 |
47 |
| 40-125(I)A |
10.5 |
16 |
＂ |
1.1 |
＂ |
2.3 |
40 |
| 40-160(I) |
12.5 |
32 |
＂ |
3 |
＂ |
2.3 |
67 |
| 40-160(I)A |
10.5 |
25 |
＂ |
2.2 |
＂ |
2.3 |
56 |
| 40-200(I) |
12.5 |
50 |
＂ |
5.5 |
＂ |
2.3 |
110 |
| 40-200(I)A |
10.5 |
40 |
＂ |
4 |
＂ |
2.3 |
88 |
| 40-250(I) |
12.5 |
80 |
＂ |
11 |
＂ |
2.3 |
175 |
| 40-250(I)A |
10.5 |
65 |
＂ |
7.5 |
＂ |
2.3 |
125 |
| 50-100 |
12.5 |
12.5 |
＂ |
0.75 |
＂ |
2.3 |
39 |
| 50-125 |
12.5 |
20 |
＂ |
1.5 |
＂ |
2.3 |
49 |
| 50-125A |
10.5 |
16 |
＂ |
1.1 |
＂ |
2.3 |
42 |
| 50-160 |
12.5 |
32 |
＂ |
3 |
＂ |
2.3 |
68 |
| 50-160A |
10.5 |
25 |
＂ |
2.2 |
＂ |
2.3 |
58 |
| 50-200 |
12.5 |
50 |
＂ |
5.5 |
＂ |
2.3 |
108 |
| 50-200A |
10.5 |
40 |
＂ |
4 |
＂ |
2.3 |
88 |
| 50-250 |
12.5 |
80 |
＂ |
11 |
＂ |
2.3 |
175 |
| 50-250A |
10.5 |
65 |
＂ |
7.5 |
|
2.3 |
125 |
| 50-100(I) |
25 |
12.5 |
＂ |
1.5 |
＂ |
2.5 |
55 |
| 50-100(I)A |
20 |
10 |
＂ |
1.1 |
＂ |
2.5 |
48 |
| 50-125(I) |
25 |
20 |
＂ |
2.2 |
＂ |
2.5 |
76 |
| 50-125(I)A |
20 |
16 |
＂ |
1.5 |
＂ |
2.5 |
66 |
| 50-160(I) |
25 |
32 |
＂ |
4 |
＂ |
2.5 |
85 |
| 50-160(I)A |
20 |
25 |
＂ |
3 |
＂ |
2.5 |
84 |
| 50-200(I) |
25 |
50 |
＂ |
7.5 |
＂ |
2.5 |
146 |
| 50-200(I)A |
20 |
40 |
＂ |
5.5 |
＂ |
2.5 |
144 |
| 50-250(I) |
25 |
80 |
＂ |
15 |
＂ |
2.5 |
193 |
| 50-250(I)A |
20 |
65 |
＂ |
11 |
＂ |
2.5 |
182 |
| 50-315(I) |
25 |
125 |
＂ |
30 |
＂ |
2.5 |
330 |
| 50-315(I)A |
20 |
100 |
＂ |
22 |
＂ |
2.5 |
270 |
